IMPACT WRENCH

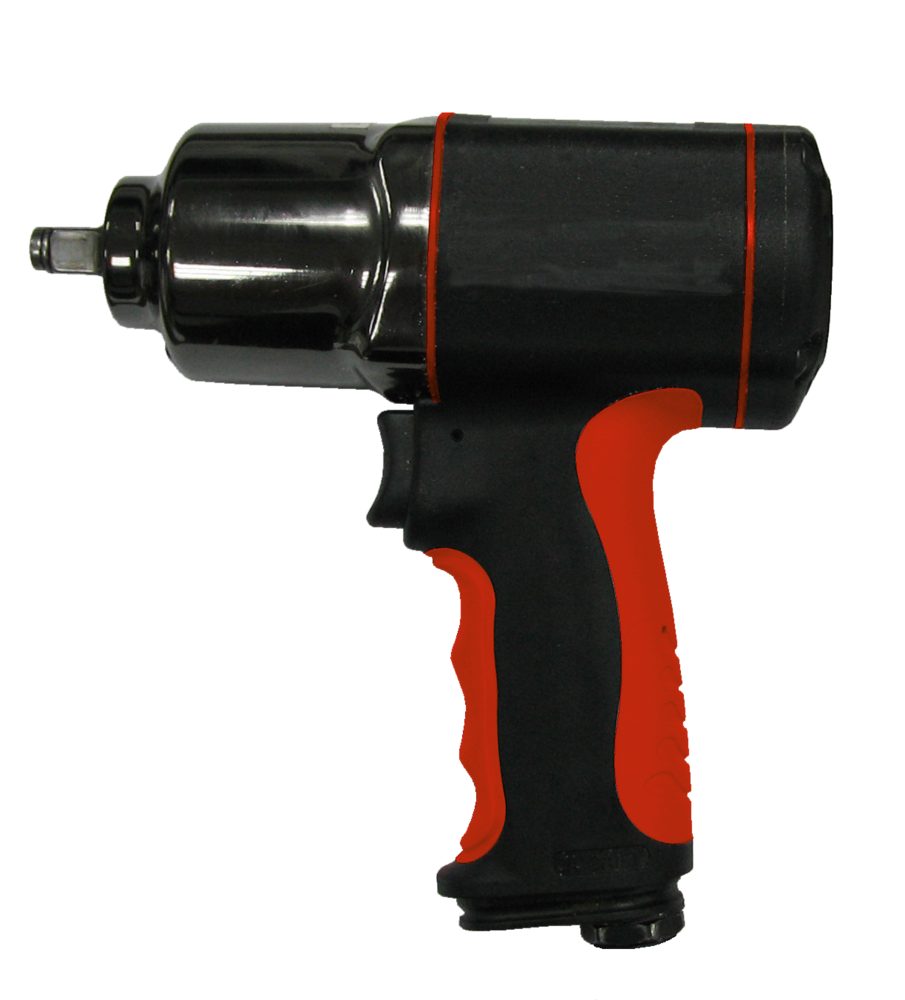

HY-763A

★Innovative composite housing for light weight with strong re-enforced hammer case
★High performance twin clutch mechanism
★Forward/Reverse power regulator with 3 forward power settings and maximum power in reverse
★Ideal for motor bike, engine works, wood working, house projects
★Family series look with 1060 (1/2") & 561(3/4")
CLUTCH
TYPE 		SIZE FREE
SPEED
(rpm) 		AVERAGE
AIR
CONSUMPTION
( 25% )SCFM 		MAX
TORQUE
(n-m) 		MAX
TORQUE
(ft-lb) 		SOUND dBA
(pressure) 		SOUND dBA
(power) 		VIBRATION EXHAUST LENGTH
(mm) 		LENGTH
(inch) 		WEIGHT
(kg) 		WEIGHT
(lbs) 		AIR
PRESSURE
(psi) 		AIR
PRESSURE
(kg/cm2) 		AIR INLET
TWIN 3/8" 10,000 5.5 434 320 91.25 102.25 4.4 HANDLE 162 6.37 1.2 2.6 90 6.3 1/4"
