IMPACT

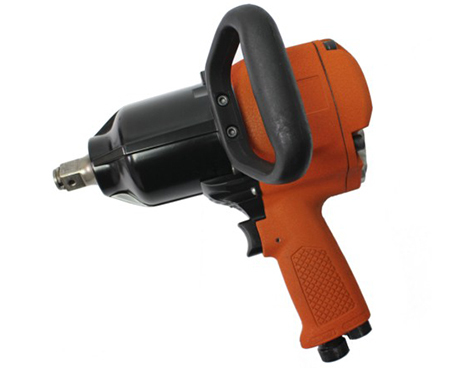

HY-861

★Specially designed for easy service maintenance.
★High performance motor maximizes power output with full power in reverse; multiple adjustable power in forward.
★The optional exhaust direction either front or handle provides the user more practical applications in the different working environments.
★ Ideal for tough working environment.
CLUTCH
TYPE 		SIZE FREE
SPEED
(rpm) 		AVERAGE
AIR
CONSUMPTION
( 25% )SCFM 		MAX
TORQUE
(n-m) 		MAX
TORQUE
(ft-lb) 		SOUND dBA
(pressure) 		SOUND dBA
(power) 		VIBRATION
(m/s2) 		EXHAUST LENGTH
(mm) 		LENGTH
(inch) 		WEIGHT
(kg) 		WEIGHT
(lbs) 		AIR
PRESSURE
(psi) 		AIR
PRESSURE
(kg/cm2) 		AIR INLET
PIN 3/4" 4,000 10 1,760 1,300 95.41 106.41 4.54 HANDLE & FRONT 268 10.5 5.99 13.2 90 6.3 3/8"
